Lüder s bands can be eliminated by cold rolling the thickness by 0 5 1 5.

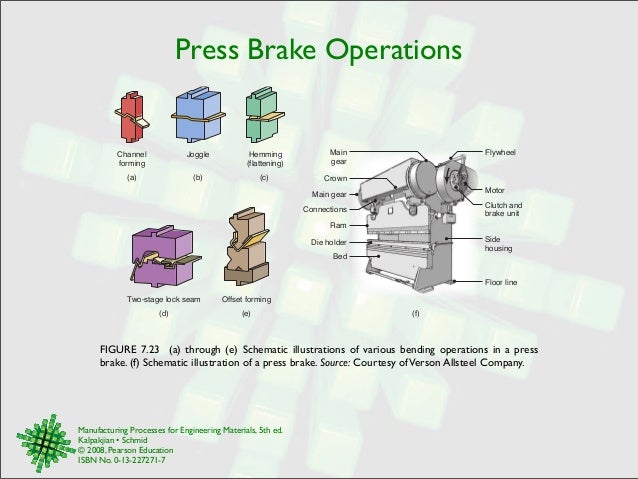

Types of sheet metal operations ppt. Thus the free or unfixed edge of the sheet metal piece is bent to make the forming process. Bending straining of a metal sheet to form an angle bend. Sheet metal forming operations. Sheet metal forming operations.

Basic types of sheet metal processes 1. A die is a specialized tool used in manufacturing industries to cut or shape the material mostly using a press. Ppt on sheet metal process 1. Sheet metal forming operations.

Other sheet metal forming operations 5. Drawing forming a sheet into a hollow or concave shape. Sheet metal operations not performed on presses 7. It is a type of bending operation in which a piece of sheet metal is fixed or held between two dies from one end as shown in the fig.

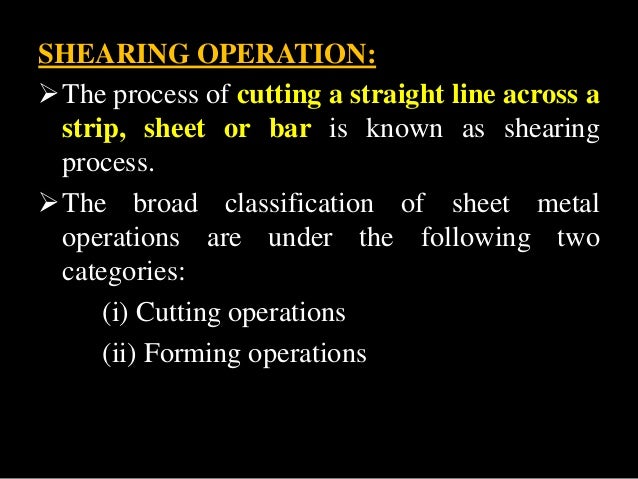

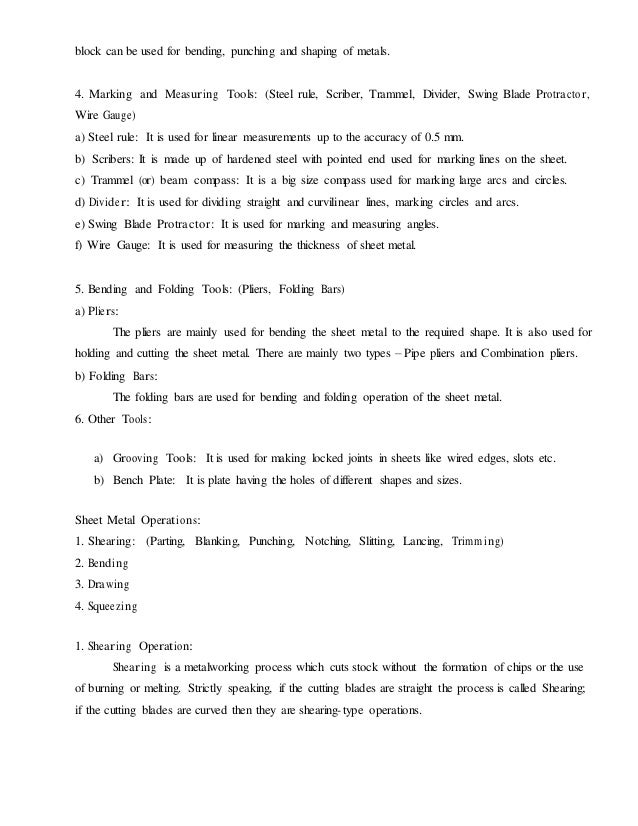

Shearing operation shearing is the process of separating the sheet metal into two or more pieces normally by cutting along a line. The first one is sheet metal cutting second one is sheet metal bending or forming and the last one is known as deep drawing in this article we mainly focus on sheet metal cutting operations and other two we will discuss into upcoming articles. Mainly sheet metal process can be divided into three types. Just go through it so that you can understand easily the current topic on types of dies.

Sheet metalworkingforming on metal sheets strips and coils. The process is normally a cold working process using a set of punch and die. M p groover fundamentals of modern manufacturing 3 e sheet metalworking 1. Before discussing about bending process and its types first you should learn about basic terminologies used in bending.

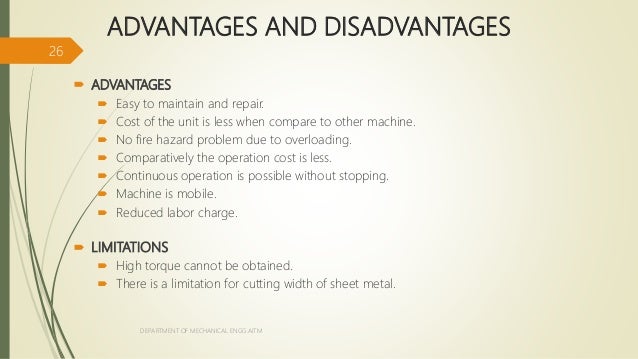

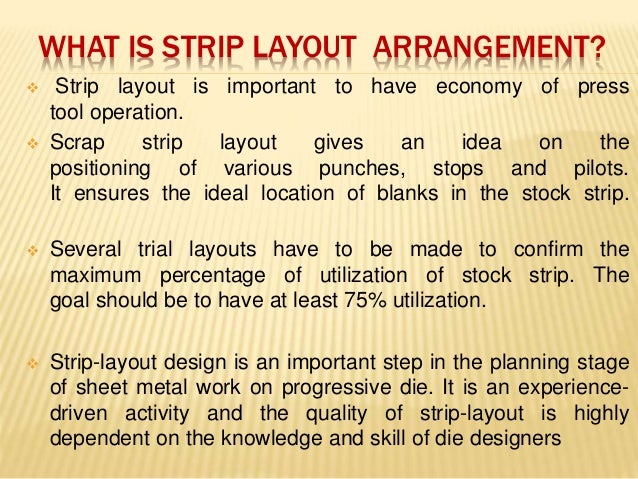

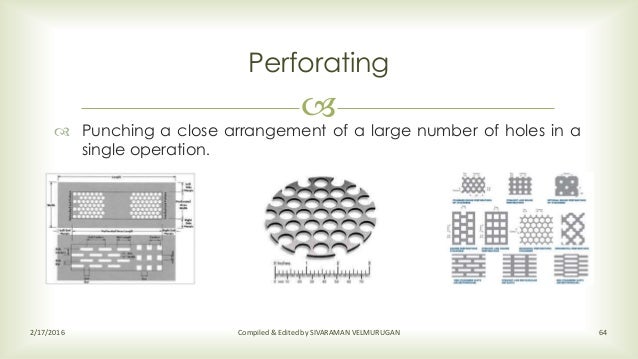

Simply put cutting operations cause the sheet metal to be stressed beyond its ultimate strength therefore breaking its structure and separating into different parts. Dies and presses for sheet metal processes 6. Cutting shearing to separate large sheets blanking to cut part perimeters out of sheet metal punching to make holes in sheet metal 2. Shearing not a forming process but a cutting process.

Sheet metal characteristics elongation the capability of the sheet metal to stretch without necking and failure. Many products like automobile components and its body home appliance paper clip metal doors etc. Bending is a most common sheet metal forming operation. Hello guys we had discussed press working operations in the previous post.

Bending straining sheet around a straight axis 3. Drawing forming of sheet into convex or concave shapes 8 1. Bending of sheet metal quiz questions. Yield point elongation lüeder s bands on low carbon steels and al mg alloys.

Then the other end is forced to strike upon the punch which is free or unfixed. Are shaped by bending process.
